SMTP Relay Service on Windows: Comprehensive Guide for Administrators and Developers

Introduction to SMTP Relay Service on Windows

SMTP (Simple Mail Transfer Protocol) relay services play a pivotal role in the seamless transmission of emails across networks. On the Windows platform, configuring an SMTP relay service is essential for businesses, IT administrators, and developers who manage email communication. Whether you're setting up a local mail server or managing a cloud-based infrastructure, understanding how to configure and optimize an SMTP relay service on Windows is a critical skill.

What Is an SMTP Relay Service?

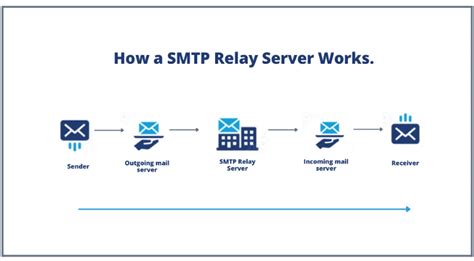

An SMTP relay service acts as an intermediary in the email delivery process. Instead of sending emails directly from the client to the recipient’s server, the relay service forwards the mail on behalf of the sender. This mechanism is particularly useful for:

• Corporate networks that need to send emails internally or externally without exposing internal IP addresses.
• Cloud-hosted applications that require sending emails via a secure, designated relay.
• Email marketing platforms that need to manage large volumes of mail efficiently.

On Windows, the SMTP relay service is often implemented using Microsoft’s built-in **SMTP Server** component, which is part of the **IIS (Internet Information Services)** suite. This component allows administrators to configure specific relay options, set up authentication, and manage routing rules effectively.

Why Use an SMTP Relay Service on Windows?

There are several compelling reasons to use an SMTP relay service on Windows, especially for enterprise-level environments:

• Security: By relaying emails through a designated server, sensitive information stays protected from external threats.
• Control: Administrators can monitor and manage outgoing mail traffic effectively, ensuring compliance with internal policies.
• Scalability: Relay services can handle large volumes of mail without affecting the performance of the client machine.
• Compliance: Many industries require strict email logging and record-keeping, which relay services can facilitate.

For organizations that rely on Windows-based infrastructure, the ability to configure an SMTP relay service is often a necessity rather than an option.

Asset Ref: SMTPrelayservicewindows

Configuring SMTP Relay Service on Windows

Setting up an SMTP relay service on Windows involves several steps. Below is a detailed guide to help you navigate the process efficiently.

Step 1: Install IIS SMTP Server

To begin, you need to install the IIS SMTP Server component. Here’s how:

1. Open the **Server Manager** on your Windows machine.
2. Navigate to **Add roles and features**.
3. Select **Role-based or feature-based installation**.
4. Choose the server where you want to install the SMTP service.
5. Scroll down and select **SMTP Server** under the **Web Server** category.
6. Click **Install** and wait for the process to complete.

After installation, the SMTP Server will be available for configuration via the IIS Manager.

Step 2: Access IIS Manager

Once installed, you’ll need to access the IIS Manager to configure the relay settings.

1. Launch **Internet Information Services (IIS) Manager** from the administrative tools.
2. Select the server node in the left-hand pane.
3. In the middle pane, click on **SMTP E-Mail** under the **Features View**.

This opens the SMTP E-Mail configuration window where you can adjust relay options.

Step 3: Configure Relay Settings

The key to a successful SMTP relay service setup is configuring the relay options correctly. Here’s what you need to do:

Asset Ref: configureSMTPrelaywindows

• Set the Fully Qualified Domain Name (FQDN): Enter the domain name of your organization in the **FQDN** field. This is critical for email recipients to identify your server.
• Configure Relay Options: Under the **Delivery** tab, specify the IP addresses or domains that are allowed to relay mail. Use the **Allow Relaying** option to define who can send mail through your server.
• Authentication Settings (Optional but recommended): If you want to secure the relay service, enable authentication. You can set up username/password credentials or integrate with Windows Active Directory for user authentication.

These settings ensure that only authorized users or systems can send emails via your relay service.

Step 4: Set Up Firewall and Port Access

To allow outgoing mail traffic, you must configure your firewall to open the necessary ports. Typically, port **25** is used for SMTP communication.

1. Open the **Windows Defender Firewall with Advanced Security**.
2. Click on **Inbound and Outbound Rules**.
3. Create a new rule to allow traffic on port **25** (or another port if you’re using a different configuration).
4. Assign the rule to apply to the SMTP service instance.

This step is essential to prevent firewall restrictions from blocking outgoing mail.

Step 5: Test the SMTP Relay Service

Before finalizing the setup, it’s prudent to test the relay service to ensure mail is being forwarded correctly. Here’s how you can test:

1. Open a command prompt or PowerShell window.
2. Use the **telnet** or **Test-NetCo
   ection** PowerShell cmdlet to co
   ect to the SMTP server on port 25.
3. Send a sample email using the **Send-MailMessage** PowerShell cmdlet or an external mail client.
4. Verify that the mail reaches the intended recipient without errors.

Testing helps identify any configuration issues before full deployment.

Advanced SMTP Relay Service Options on Windows

For more sophisticated use cases, Windows offers advanced options that can enhance the functionality of the SMTP relay service.

Custom SMTP Headers

Administrators can add custom headers to outgoing emails for additional metadata or routing information. This is particularly useful for tracking or logging purposes.

• Add headers like **X-Originating-IP** or **X-Mailer** to provide additional context to the recipient server.

Custom headers can be configured via the IIS Manager under the **Message Format** settings.

SMTP Logging and Monitoring

Windows SMTP Server includes built-in logging capabilities to help administrators monitor traffic and troubleshoot issues.

Asset Ref: emailrelaywindows

• Access logs via the **SMTP E-Mail** section in IIS Manager.
• Logs typically include timestamps, sender/receiver info, and message IDs.
• Use these logs to identify performance issues or security breaches.

Logging is essential for maintaining a secure and efficient relay service.

Integration with Email Servers

For organizations using external email servers (e.g., Exchange, Gmail, or Office 365), integration with these platforms is vital. Windows SMTP relay services can be configured to forward mail to these external servers via specific routing rules or co
ectors.

• Use **SMTP co
  ectors** to route mail to external servers.
• Ensure routing rules align with the external server’s requirements.

Integration ensures seamless communication between Windows-based systems and external mail platforms.

Best Practices for SMTP Relay Service on Windows

To ensure optimal performance and security, administrators should follow best practices when configuring an SMTP relay service on Windows.

• Regular Monitoring: Keep an eye on the relay service for anomalies or suspicious activity.
• Security Updates: Apply the latest security patches to the IIS SMTP Server and related components.
• Authentication: Always enable authentication to prevent unauthorized relaying of mail.
• Capacity Pla
  ing: Scale your relay infrastructure according to expected mail volume to avoid bottlenecks.

Adhering to these practices helps maintain a reliable and secure email infrastructure.

Common Issues and Troubleshooting Tips

Despite careful configuration, issues may arise. Here are some common problems and their solutions:

• Relay Denied Errors: If you receive a relay denied error, verify the IP addresses or domains allowed to relay mail. Adjust the relay settings accordingly.
• Port Blocking: If mail traffic is blocked, check the firewall settings to ensure port 25 (or your chosen port) is open.
• Configuration Errors: Misconfigured FQDN or delivery options can hinder mail delivery. Review the settings for accuracy.

For troubleshooting, use diagnostic tools like **Event Viewer** or **SMTP logs** to pinpoint the root cause of the issue.

Alternative SMTP Relay Services for Windows

While the built-in IIS SMTP Server is a popular choice, there are alternative SMTP relay services available for Windows users. These options may offer additional features or better scalability depending on your needs.

• Third-party SMTP servers: Products like **MailEnable**, **Mercury Mail Transport System**, or **hMailServer** provide robust relay capabilities with additional features like spam filtering, user management, and more.
• Cloud-based relay services: Platforms like **SendGrid**, **Mailgun**, or **Amazon SES** offer scalable cloud-based solutions for sending emails via their own relay infrastructure.

Choosing an alternative depends on your specific requirements, such as cost, scalability, or feature set.

Conclusion

In summary, configuring an SMTP relay service on Windows is a critical component of modern email infrastructure. Whether you’re managing a local mail server or supporting a large enterprise, understanding the setup, configuration, and best practices of an SMTP relay service will ensure efficient and secure email communication. By following the steps outlined in this guide and adhering to best practices, administrators can deploy a robust SMTP relay solution tailored to their specific needs.

As the digital landscape continues to evolve, the ability to adapt and optimize your email infrastructure will remain a key advantage for any organization.

FAQ

• Q: Can I use the IIS SMTP Server for free?

  A: Yes, the IIS SMTP Server component is included with Windows Server and can be used without additional cost.

• Q: Is authentication mandatory for an SMTP relay service?

  A: While not mandatory, enabling authentication is strongly recommended to prevent abuse and unauthorized relaying.

• Q: Can I integrate the Windows SMTP relay with external email platforms?

  A: Yes, integration with external platforms like Exchange or Gmail is possible using SMTP co
  ectors or routing rules.

For more information or support, consult official Microsoft documentation or reach out to your IT support team.
